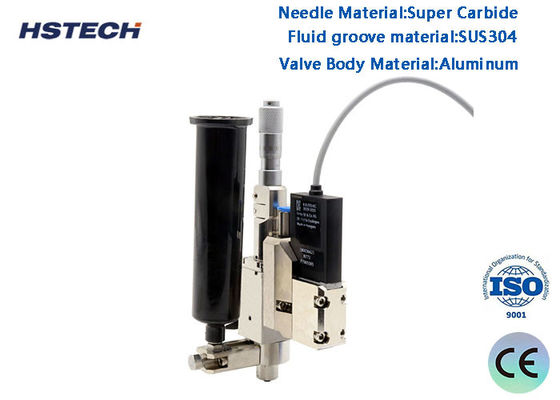

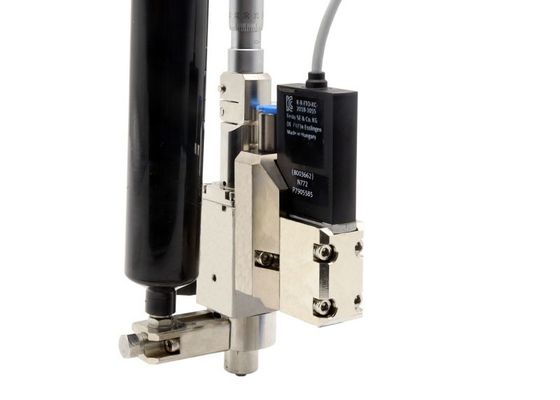

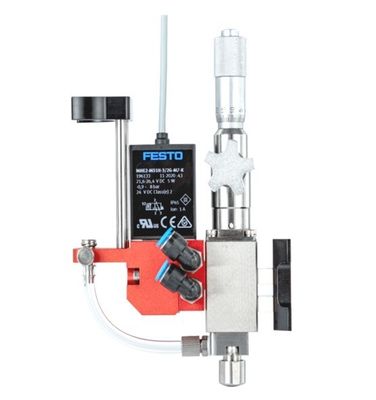

High Speed Aluminum Jetting Valve HS PF 100 HS PF 200 Controlled Volume Dispensing Valve

The Jetting Valve HS PF 100 and HS PF 200 are high-speed controlled volume dispensing jetting valves designed for precision industrial glue dispensing applications. Featuring premium aluminum valve body material, these two models of jetting valves deliver lightweight structure, high rigidity, excellent heat dissipation and corrosion resistance, perfectly solving common problems of traditional dispensing valves such as unstable glue output, low efficiency and easy wear.

As core non-contact dispensing accessories, HS PF 100 jetting valve and HS PF 200 jetting valve adopt optimized pneumatic jetting structure with high-frequency jetting performance. They support accurate fixed-volume glue output without contacting workpieces, effectively avoiding workpiece scratching, glue drawing and uneven coating. The two models cover different glue volume and precision requirements, meeting diversified precision dispensing demands from micro dot gluing to medium-volume quantitative dispensing. Widely compatible with automatic dispensing machines and SMT assembly production lines, these aluminum jetting valves are ideal for high-stability continuous dispensing production.

1.  High-speed jet valve is a high speed non-contact jet valve driven by pneumatic pressure and controlled by solenoid valve, breaking through the traditional contact dispensing technology, no need to move the Z-axis when working, the spring pressure in the cavity is adjustable pneumatic pressure is used to drive, non-contact jet dispensing, high precision, fast speed solenoid valve control, fine scale micrometer to adjust the stroke, the spring pressure in the cavity is adjustable air-cooled way of physical cooling and cooling of the valve, which greatly improves the performance and life of the valve. Improve the performance and life of the valve.
2.  Compact exterior design, flexible equipment installation, fast maintenance and servicing.

1.  The touch screen controls the piezoelectric injection valve and dispensing system, supports 485 communication, powerful, safe and reliable.
2.  The touch screen adopts graphic control mode, the components of dispensing system and the control display function are displayed graphically, which is concise and intuitive.
3.  Nozzle heating device:The nozzle is required to be heated to a suitable temperature before dispensing. The heating device adopts one-stage heating mode.
4.  Heating at the nozzle maintains the constant temperature of the gel to meet the best performance of the gel. The best performance of the colloid.

• SMT & PCB Assembly: Circuit board sealing, component bonding, solder resist dispensing, and precision fixing of tiny electronic parts
• FPC Flexible Circuit Processing: Flexible board edge sealing, film bonding, and micro dot dispensing for precision pads
• 3C Consumer Electronics: Camera module sealing, earphone and watch shell bonding, internal waterproof and shockproof gluing
• Automotive Electronics Manufacturing: Sensor sealing, control module bonding, and precision gluing of automotive miniature electronic components
• New Energy & Precision Hardware: Small battery sealing, precision plastic and metal bonding, and industrial waterproof structural gluing

We focus on the R&D and production of industrial jetting valves. Aiming at the Challenges points of unstable glue volume and easy clogging of traditional dispensing valves, our HS PF series jetting valves adopt optimized flow channel and jetting structure to ensure stable and smooth long-term dispensing operation.

Different from ordinary plastic and ordinary metal valve bodies, the integral aviation aluminum valve body improves overall stability and wear resistance, effectively resisting glue corrosion and high-frequency operation loss, reducing equipment replacement and maintenance costs.

HS PF 100 and HS PF 200 two models perfectly match micro-precision and medium-efficiency dispensing needs, helping customers choose the most suitable product according to production requirements, avoiding performance redundancy or insufficient precision.

Every jetting valve will pass continuous high-frequency jetting test, glue volume consistency test and aging test before delivery. Each product maintains high precision and stability to adapt to long-term mass production lines.

Factory direct sales eliminate intermediate links with competitive prices. Standard installation size is compatible with most mainstream dispensing equipment, realizing plug-and-play replacement and saving production line upgrade costs.

Ready to upgrade your dispensing process? Contact our sales team today for a custom quote, detailed technical datasheets, or to schedule a product demonstration. Let the HS-PF-100 and HS-PF-200 bring unmatched precision and efficiency to your production line.
