Double Platform 4 Axis PCBA Router Machine Automatic PCB Depanling Machine With CCD Detection

Double Platform 4 Axis PCBA Router Machine Automatic PCB Depanling Machine With CCD Detection

الاسم التجاري:	HSTECH
رقم الطراز:	RM-560
الـ MOQ:	1 جهاز كمبيوتر
السعر:	negotiable
شروط الدفع:	تي/تي
القدرة على التوريد:	50 جهاز كمبيوتر / شهر

معلومات مفصلة

وصف المنتج

معلومات مفصلة

مكان المنشأ:

الصين

إصدار الشهادات:

CE,ISO

اسم المنتج:

آلة راوتر PCBA

اسم آخر:

جهاز التوجيه التلقائي ثنائي الفينيل متعدد الكلور

الجهد االكهربى:

تيار متردد 380 فولت، 50 هرتز

توجيه المغزل:

6000 دورة في الدقيقة

الوزن الإجمالي:

700 كجم

ضمان:

1 سنة

تفاصيل التغليف:

خشبي

القدرة على العرض:

50 جهاز كمبيوتر / شهر

إبراز:

4 axis PCBA router machine with CCD detection

automatic PCB depaneling machine with CCD

double platform PCB depaneling router

وصف المنتج

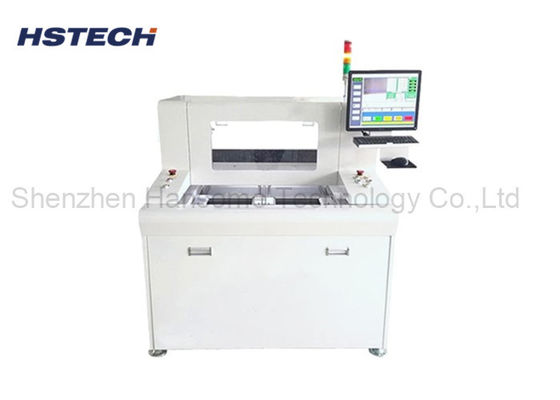

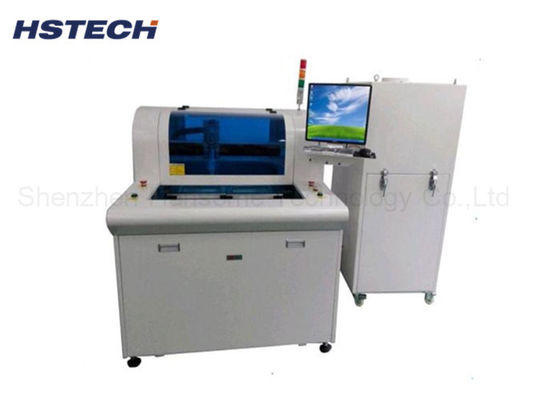

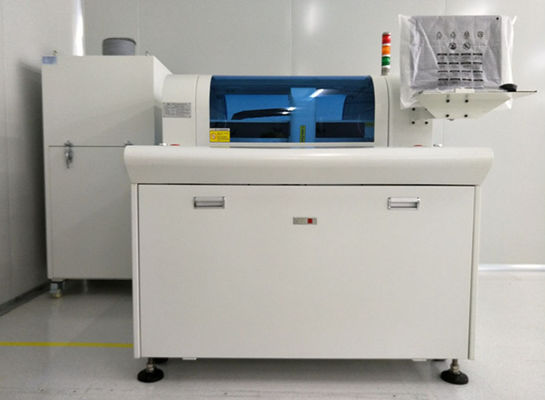

Double Platform 4 Axis PCBA Router Machine

Automatic PCB Depaneling Machine with CCD Detection for precision separation of SMT post-process PCBA assemblies.

Product Overview

This double-platform automatic PCB depaneling router is precision separation equipment specifically designed for SMT post-process PCBA cutting. Featuring HIWIN high-precision linear guides, a 4-axis full servo driving system, and a stable 6000RPM high-speed routing spindle, the machine operates fully automatically following pre-programmed cutting paths.

It effectively handles separation requirements for stamp-hole linked PCBs, curved circuit boards, and various irregular-shaped assemblies, replacing outdated traditional V-Cut separators to deliver cleaner, stress-free depaneling results.

Utilizing Windows operating system with built-in CCD visual positioning detection, operators can monitor the entire cutting procedure in real time, ensuring stable machining accuracy and consistent finished PCB quality for mass electronics production.

Working Principle

File Import & Program Setting: Operators import PCB Gerber files or manually mark cutting tracks on the Windows touch control system to generate independent routing programs for each board model.
CCD Visual Positioning Calibration: The built-in CCD camera automatically identifies PCB fiducial marks to calibrate cutting tracks, eliminating manual positioning errors.
Servo-Driven Precision Routing: The 4-axis servo motor system drives the 6000RPM high-speed spindle to move along preset paths. The sharp routing bit cuts through PCB connecting tabs gently without stretching or cracking components on PCBA.
Dust Collection & Finished Board Output: An integrated internal dust collector absorbs all cutting debris and resin dust during operation to keep the work zone clean. After routing completes, finished separated PCBs are ready for unloading.

Key Features

6000 RPM high-speed routing spindle for smooth cutting with low vibration and no component damage
Double independent worktable design for alternating loading & unloading to maximize production efficiency
Full HIWIN linear guide transmission for ultra-smooth movement, long service life, and stable cutting precision
4-axis servo motor full drive with accurate position control and repeat positioning error less than 0.02mm
Windows intelligent operating system supporting Gerber file direct import and manual point-to-point positioning
Built-in CCD visual detection system for real-time track monitoring and automatic offset correction
Integrated powerful dust collector to collect PCB powder and cutting scraps, protecting spindle and workshop environment
Wide material compatibility including FR4 rigid PCB, aluminum substrate, FPC flexible circuit board, and composite boards
Ideal substitute for traditional V-Cut separators, handling stamp-hole linked panels and curved special-shaped boards
Low operating noise, compact body design, easy maintenance, and simple operator training

Technical Specifications

Model	RM-560
Structure	Single Spindle, dual work platforms
Machine Size (mm)	100012001550
Gross Weight	700kg
Dust Collector Size (mm)	6256001600
Dust Collection Method	Bottom collection
Work Platform Size	300*400mm
Platform Driving Type	Double rotary platform, precision slicer with 3-phase motor inverter
Driving System	X/Y/Z axis driven by servo motor, W axis driven by three phase motor frequency inverter
Routing Spindle	6000rpm
Cutting Speed	1-100mm/s
Cutting Accuracy	±0.05mm
Repeat Accuracy	±0.02mm
Axis Moving Speed	800mm/s
Z Axis System	Screw driven, dual guide
Router Kit	Milling cutter, φ0.8~φ3.0 left rotation, Shank Tungsten Steel
Tool Life Control	Software program control
Active Protective Function	Safety light curtain
Security Door	Manual door
Error Alarm	Yes
Program Method	Self programming, camera controlled by keyboard and mouse

Compatible PCB Materials

FR4 rigid circuit board, aluminum base PCB, FPC flexible board, CEM-1 composite board, thin multi-layer PCB

Main Depaneling Applications

Stamp-hole connected PCB panels
Irregular curved contour circuit boards
Thin delicate assemblies with sensitive SMT components
Small batch prototype PCBA & large-volume mass production lines
