5 Axis Dual Table Robtic Soldering Machine With Smoke Purification Filter System

5 Axis Dual Table Robtic Soldering Machine With Smoke Purification Filter System

الاسم التجاري:	HSTECH
رقم الطراز:	HS-S5331R
الـ MOQ:	1 جهاز كمبيوتر
السعر:	negotiable
شروط الدفع:	تي/تي
القدرة على التوريد:	100 جهاز كمبيوتر / شهر

معلومات مفصلة

وصف المنتج

معلومات مفصلة

مكان المنشأ:

الصين

إصدار الشهادات:

CE,ISO

اسم المنتج:

روبوت لحام آلي

المحور ص:

360 درجة

البعد (الطول * العرض * الارتفاع):

716*585*800 مللي متر

طريقة اللحام:

نقطة لحام / لحام السحب

سرعة XYZ:

ماكس 300 مم / ثانية

ضمان:

1 سنة

تفاصيل التغليف:

خشبي

القدرة على العرض:

100 جهاز كمبيوتر / شهر

إبراز:

5 axis robotic soldering machine,dual table soldering robot,smoke purification filter system

dual table soldering robot

smoke purification filter system

وصف المنتج

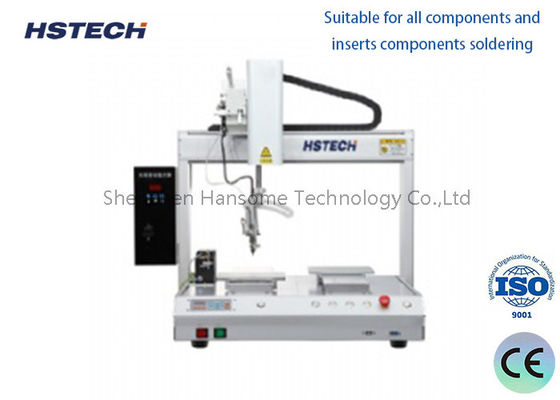

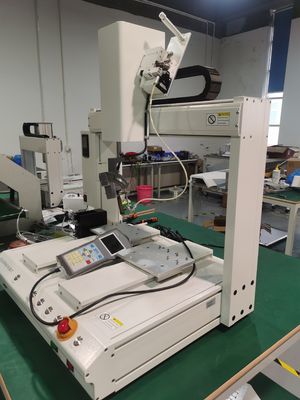

5 Axis Dual Table Robotic Soldering Machine With Smoke Purification Filter System

High Quality 5 Axis Dual Table Robotic Soldering Machine With Smoke Purification Filter System

Product Overview

This automated soldering machine is engineered for modern electronics manufacturing. Featuring 5-axis movement, stepper motor precision, and a teach pendant programming system, it delivers consistent, high-quality solder joints for through-hole, SMT, and specialty components.

Key Features

5-Axis Soldering: Full 5-axis capability enables flexible soldering angles, making it suitable for complex PCB assemblies and hard-to-reach joints.
Stepper Motor Control: Closed-loop stepper motor control ensures accurate, repeatable positioning with minimal deviation - critical for fine-pitch soldering.
Heating & Broken Tin Control: Integrated heating management and broken tin detection reduce cold solder joints and prevent wire jams, improving yield.
High-Quality Linear Guide: Precision linear guides guarantee smooth, flat, and low-friction movement, enhancing soldering consistency.
Flexible Soldering Modes: Supports both spot soldering and drag soldering, as well as custom soldering routines - perfect for mixed technology assemblies.
Rugged Machine Arm: Constructed from private-model aluminum alloy, offering a stable, non-bent, anti-rust structure for long-term industrial use.
Teach Pendant Programming: User-friendly teach pendant allows on-the-fly programming. The system can store up to 99 soldering programs, making changeovers fast and easy.
Smoke Purification Filter System: Built-in smoke filtration protects operators and the environment. It also extends soldering iron tip life and maintains soldering quality by reducing fume-related oxidation.

Technical Specifications

Model	HS-S5331R
X/Y1/Y2/Z Working Range	500300300*100mm
R Axis	360°
XYZ Speed	Max 300mm/s
Drive System	Stepping Motor + Timing Belt
Repeat Accuracy	±0.02mm
Operation Method	Auto
Programming	Manual programming (Teach Pendant)
Control System	Constant control system
Control	Control board
Program Storage	Can store one thousand sets of processing data and a single processing file can occupy up to 3M storage space (five thousand processing points)
File Storage Space	Hand held box 256M, offline card 32M, single processing file up to 3M storage space (100,000 processing points)
Weight	90kg
Dimension (LWH)	716585800mm
Power Supply	220V 50-60Hz
Temperature Control Range	0-550°C
Iron Tip Cleaning	Air cleaning/Pneumatic
External Interface	USB + RS232
Soldering Method	Point Soldering/Drag Soldering
Working Temp/Humidity	5-40°C/20-90% RH
